Front USB support: USB3.2 Gen2 Type-C x1, USB3.2 Gen1 x4, USB2.0 x4
4 DDR4 DIMM slots, supports up to 128GB
Audio Boost for studio-grade sound quality
Features 3 M.2 slots, one supporting PCIe 4.0 x4
Onboard 2.5G LAN & LAN manager for best online experience
Extended Heatsink with Aluminum cover for optimal heat dissipation
Buy more, save more Buy 2–4 of this item and save 5%. Buy 5 or more of this item and save 10%. Discount is automatic in your cart on regular-priced items. It cannot be combined with coupon codes or sale prices.
Country suggested using IP or browser language; you can change it. Shipping is confirmed at checkout.
MSI Z590-A PRO Intel LGA1200 ATX Motherboard with PCIE 4.0 and USB 3.2 Gen, Model #655,

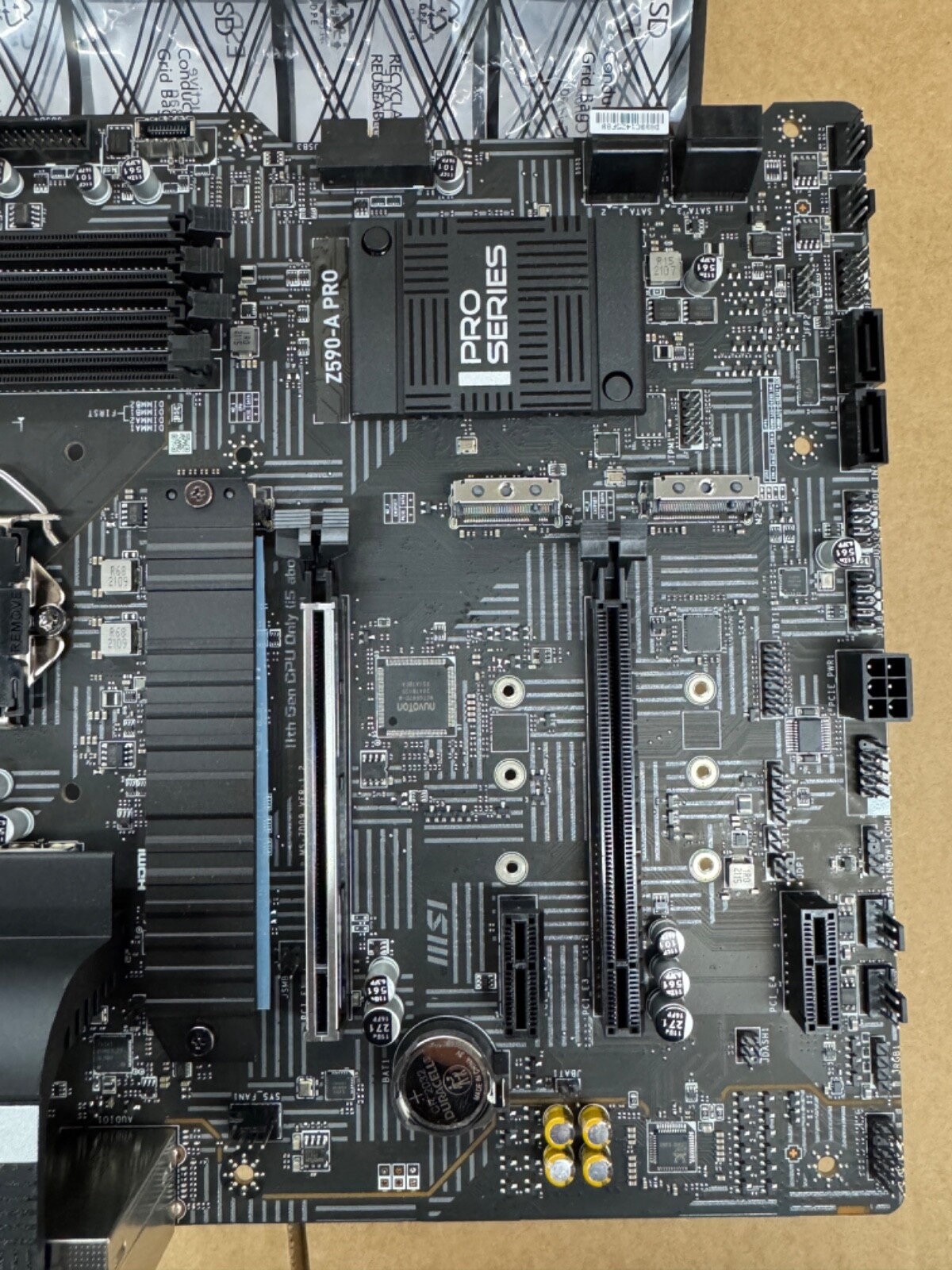

MSI Z590-A PRO Intel Socket LGA1200 ATX Motherboard
Product Overview:
Upgrade your PC with the MSI Z590-A PRO motherboard, featuring Intel Z590 chipset for exceptional performance. This motherboard is designed to support 11th & 10th Gen Intel processors and offers a range of innovative features to enhance your computing experience.
Key Features:
Memory Support: DDR4 2133 up to 5333 MHz for optimal performance.
Wireless LAN: Add-on WLAN card or dongle required for wireless connectivity.
Front USB Support: USB3.2 Gen2 Type-C x1, USB3.2 Gen1 x4, USB2.0 x4 for easy connectivity.
Audio Boost: Studio-grade sound quality with Audio Boost technology.
Memory & M.2 Slots: 4 x DDR4 Boost DIMM slots and 3 x M.2 slots for high-speed storage.
Serial Ports: Internal connector for easy setup of a Serial port.
LAN Connectivity: Onboard 2.5G LAN & LAN manager for the best online experience.
Heat Dissipation: Extended Heatsink with Aluminum cover for efficient heat dissipation.
PCI-E and M.2 Solutions: Lightning Gen4 technology for maximum transfer speed.
Troubleshooting: EZ Debug LED for easy diagnostics.
Specifications:
UPC: 824142241011
Socket Type: LGA 1200
Form Factor: ATX
Multi-GPU Support: Not applicable
SATA Ports: 6 x SATAIII (6Gb/s)
CPU Socket: Supports Intel 11th & 10th Gen processors
PCIe Slots: 2 PCIe 4.0/3.0 x16 slots (1 with Steel Armor) & 2 x PCIe 3.0 x1 slots
LAN: Intel 1225V 2.5Gbps LAN Controller
OS Support: Windows 10 64-bit
Audio: Realtek ALC897 Codec for 7.1-channel HD Audio
RAID Support: RAID 0/1/5/10 for SATA HDDs & SSDs; RAID 0/1 for M.2 PCIe SSDs
Compatibility:
Brand: MSI
Compatible CPU Brand: Intel
Number of Memory Slots: 4
Expansion Slots: PCI
Input/Output Ports: DisplayPort, HDMI, Ethernet (RJ-45), USB 2.0
MPN: Z590APRO
Most Suitable For: Casual Computing, Gaming
Memory Type: DDR4 SDRAM
Upgrade your PC with the MSI Z590-A PRO motherboard for enhanced performance, connectivity, and reliability. Perfect for casual computing and gaming enthusiasts alike.
, , MSI
Memory Support
Supports DDR4 2133 up to 5333 MHz as MSI Compatibility List
Wireless LAN
via PCIe or USB (add-on WLAN card or dongle required)
Chipset
Intel Z590
Front USB Support
USB3.2 Gen2 Type-C x1, USB3.2 Gen1 x4, USB2.0 x4
Feature2
Audio Boost to deliver the studio grade sound quality
Memory Slots
4 x DDR4 Boost DIMM slots (Dual Channel, up to 128GB)
M.2 Slots
3 x M.2 slots (only one supports PCIe 4.0 x4)
Serial Ports
Supports a Serial port via internal connector
Feature1
Onboard 2.5G LAN & LAN manager gives best online experience
Feature4
Extended Heatsink with Aluminum cover for best heat dissipation
Feature3
Lightning Gen4 PCI-E and M.2 solutions for maximum transfer speed
Feature5
EZ Debug LED provides the easiest way to troubleshoot
UPC
824142241011
Multi-GPU Support
n/a
SATA Ports
6 x SATAIII (6Gb/s) ports
CPU Socket
Socket LGA 1200 support Intel 11th & 10th Generation processors
RAID 0/1/5/10 for SATA HDDs & SSDs, RAID 0/1 for M.2 PCIe SSDs
Brand
MSI
Form Factor
ATX
Socket Type
1200
Compatible CPU Brand
Intel
Number of Memory Slots
4
Expansion Slots
PCI
InputOutput Ports
DisplayPort, HDMI, Ethernet (RJ-45), USB 2.0
Features
On-Board Audio, On-Board Video Chipset
MPN
Z590APRO
Most Suitable For
Casual Computing, Gaming
Memory Type
DDR4 SDRAM
